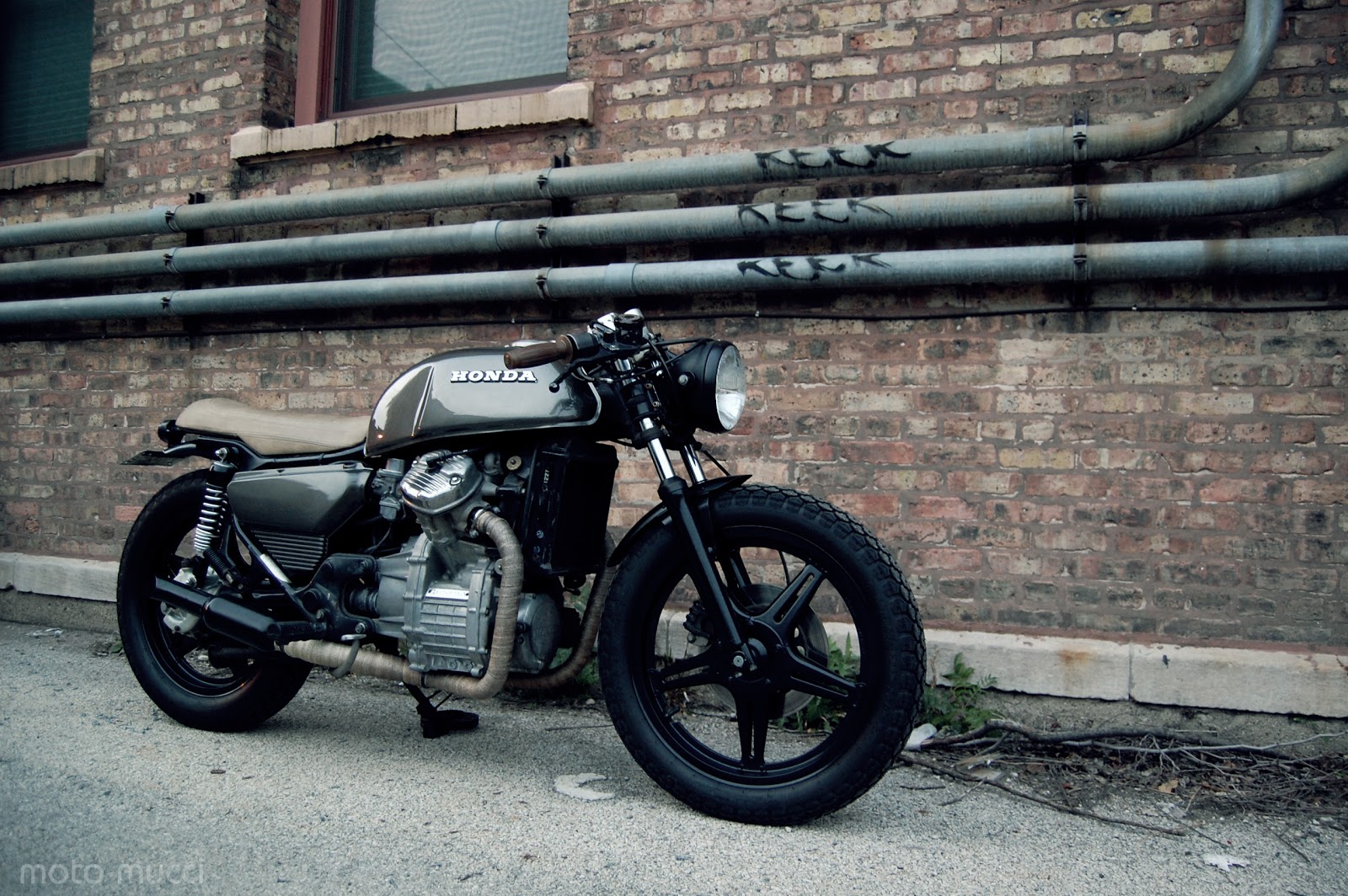

PROJECT CX: The CX500 Cafe Build Gets The Full Shoot

1978 Honda CX500
Moto-Mucci


Here it is, the full shoot on Project CX. Although it will likely never be done, the project has reached it's intentions. It's meant to be a bike for the city. A daily rider around the unforgiving roads of Chicago. Able to absorb rock chips, hail storms, and clueless people driving big SUV's.

Not only was this my first build, but my first motorcycle. I learned a ton, and aimed at doing everything on my own. Anything I couldn't learn within a few weeks practice, I outsourced to those who could.
That being said, I'd like to thank these guys:

Tony Prust of Analog Motorcycles, for all his fabrication and powder coating help.
And Art, at Rod's Designs, for the seat upholstery.

For all the background on the build, just click the Project CX tab at the top of the page.




Build Sheet
Chopped and fabricated new seat frame
Custom designed seat
Clubman style drop bars
Posh natural grips
Custom 8″ Cherry Bomb muffler with turn-out tip
Front and rear fenders chopped from a Goldwing / CX
Dunlop K70 tires
Tank and side covers painted warm metallic gray
Wheels, fenders, forks, headlight and headlight brackets powder coated satin black
7″ Headlight and bucket from SpeedMotoCo.
Headlight mounts and tail light from Dime City Cycles
All gauges removed
Tan DEI exhaust wrap with black plated hose clamps
New stiffer rear shocks, and 20W fork oil
Bike lowered 1″ front and rear
Carbs rebuilt and upjetted 90/120
NOS 70s black pistol grip levers from Japan
EBC brakes
